Create a Windows Server In Azure for TFS Migration

Updated: Jul 17

We would use the data migrator tool to complete the necessary steps.



After Our Talk With MS Support

This is the target machine to create for Azure devops 2022 which can intake the database without any data migration

My datatabase 2018 v3 beta 2



Update the presentation that is built in canva > Use the presenter notes for scripts




Search market place


https://portal.azure.com/#view/Microsoft_Azure_Marketplace/MarketplaceOffersBlade/selectedMenuItemId/home


Server AMI URL >


Dev Licence > Pray for the import size


Not documented


https://learn.microsoft.com/en-us/sql/sql-server/editions-and-components-of-sql-server-2017?view=sql-server-ver16


Basic portal errors


Hit network tab and back...


Get the install media > let the system download an iso by letting the download on the internet settings of the browser

https://drive.google.com/file/d/1L5IkOF6UxH4tF9vpXJyJTQTbnKSvsVXX/view?usp=sharing


Start your install


After Install Restore thedatabase


Locate Backup


Drink your tea while database gets restored > thanks to Chandra restoring to the 2022 server


Select I have an existing database even it is 2018 the 2022 Server should be able to ingest it


Issue



If you install as fresh server


You would end up with the configuration database



Now attach collection


Accept and attach


Get the errors with the Failed to sync identity or group



Note : Ask the enterprise to do the Azure AD Sync from the tech team


Set up your machine for program install


Choco Install



Set-ExecutionPolicy Bypass -Scope Process -Force; [System.Net.ServicePointManager]::SecurityProtocol = [System.Net.ServicePointManager]::SecurityProtocol -bor 3072; iex ((New-Object System.Net.WebClient).DownloadString('https://community.chocolatey.org/install.ps1'))



Restart the power shell and go back to the migration tool path


Time to install the migration tool ( As we have the database that is attached )

https://www.microsoft.com/en-us/download/details.aspx?id=54274




Download in the Azure DevOps Server Yes Yes Yes



Get the correct version


Extract


Open the path in power shell

cd C:\Users\rifaterdemsahin\Downloads\DataMigrationTool_AzureDevOps2022RTW_19.205.19599188\DataMigrationTool


Pin paths on the box


Validate the collection




Get your steps in now from the proof of concept stage


always record your steps




Prepare and Validate


PS

C:\Users\User\Downloads\DataMigrationTool_AzureDevOps2022RTW_19.205.19599188\DataMigrationTool> .\Migrator.exe validate /collection:http://windev2305eval/DefaultCollection/ /tenantdomainname:pexabo.onmicrosoft.com


MFA needs to turn on


ReRun


mmmm > password time!



Features



More MFA Questions



Now Time to Prepare


PS C:\Users\User\Downloads\DataMigrationTool_AzureDevOps2022RTW_19.205.19599188\DataMigrationTool> .\Migrator.exe prepare /collection:http://windev2305eval/DefaultCollection/ /tenantdomainname:pexabo.onmicrosoft.com /region:CUS


4 MFA > Number entry over the Microsoft authenticator

Take a note of the Log Folder Created



Choco install the azure storage explorer

https://community.chocolatey.org/packages/microsoftazurestorageexplorer

choco install microsoftazurestorageexplorer


Pin it to the taskbar


Login to your Azure Account and Point to the Storage Account for Dacpacs

MFA


Create Storage








Check your version of the migration tool and the operating system and Azure devops server needs to lineup

Check your environment to make sure


Install SQL package and vscode

https://community.chocolatey.org/packages/sqlpackage


choco install sqlpackage -y

choco install vscode -y


Get the path and move it to favorites

The install of sqlpackage was successful.

Software installed to 'C:\ProgramData\chocolatey\lib\sqlpackage\tools'


Also save it to notepad for future easy access



Check SQL package



Find your Notion notes by the power of Full Text Search ( Gray Skull (: )



Create a folder for dacpacs



WHEN CREATING DACPACS THE SYSTEM HAS TO BE DETACHED IN AZURE DEVOPS SERVER BUT ATTACHED IN SQL SERVER


SqlPackage.exe /sourceconnectionstring:"Data Source=localhost;Initial Catalog=AzureDevOps_DefaultCollection;Integrated Security=True" /targetFile:C:\dacpac\Tfs_DefaultCollection.dacpac /action:extract /p:ExtractAllTableData=true /p:IgnoreUserLoginMappings=true /p:IgnorePermissions=true /p:Storage=Memory


Save your script to the notepad for future reference and debug




Make sure the connection string works



Certificate Chain By Pass


https://learn.microsoft.com/en-us/troubleshoot/sql/database-engine/connect/certificate-chain-not-trusted?tabs=ole-db-driver-19


Let it process the tables


It would take the time get a tea at this time.




Before Moving the dacpacs UPDATE the necessary parts


Use VSCode and Open the file under the log folder


Logs as top folder


VSCode Open up tactic

code .

Set trust


Go to latest import.json


4 places to update before the trigger


  1. Sas Update

  2. dacpacfile

  3. target organization

  4. dryrun

First update Create Tokens( 2 weeks minimum )


dacpac level



Cloud server faster copy





Now time to go to logs and open the vscode

Master these files before moving them to cloud

When the migration starts it is from cloud to cloud ! After you are done it is time to do the transfer much faster!

Take the dacpac name from here


Have it pinned and set it in the easy access



Check the dacpack size


Trigger Migration

cd C:\Users\rifaterdemsahin\Downloads\DataMigrationTool_AzureDevOps2022RTW_19.205.19599188\DataMigrationTool

.\Migrator.exe import /importfile:Logs\DefaultCollection\20230607_134346\import.json


Add the script to the notes on the desktop for the future reference


If there is an error with the blob


Make sure the folders are matching



Try the access on your staging box


After correct was key location




NOW DETACH TIME

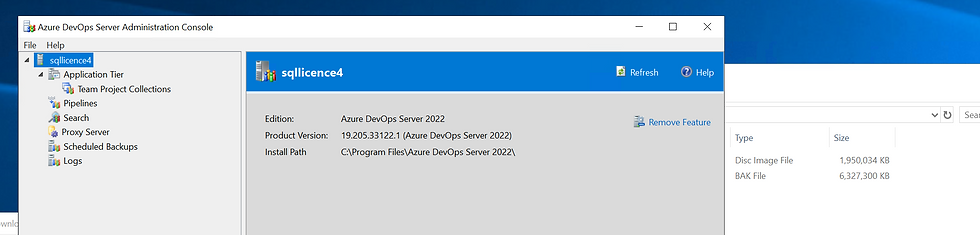

Pin the admin console to the taskbar


Detach ( the transformation happened from 2018 to 2022 import )




Push your back up


Pin to start the backup tool SQL management studio


Also to the task bar


Connect to the box and backup the collection



Wait it out


Detach from the Administration Console




ReTrigger




If the db is detached by the migratory fails restart the box to drop caches.

Give the permissions and the URL at the container level in the middle



Ask azure support if stuck

Trouble Shoot Guide

https://learn.microsoft.com/en-us/azure/devops/migrate/migration-troubleshooting?view=azure-devops


Looks like I need to recreate the dacpac


After recreating the dacpac make sure to prepare one more time otherwise it can fail just like this




Cost increase till we move on to the customer staging machine


Get the importID to give it to the Azure support


[Info @18:29:44.796] Import ID: 57ac4c69-b50a-4b2c-ad29-fa4af7000631

Azure Support


Check SQL package version


Learn where you made the error from the Azure support


Learn the order

Fails in the first 10 minutes


Check SQL package from the command prompt




Reread the error and start from scratch and share with the cohost the Azure support


Recorded Steps

  1. Turn on the box ✅

  2. detach the collection

  3. create a dacpac with the detached collectiondb name it v3

  4. move to storage

  5. attach

  6. create a SAS key

  7. validate

  8. prepare

  9. update the import json

  10. import

  11. report back to support with import id and the video

  12. Delete the blob and recreate


It fails at the prototype and the Azure team with SQL team is working on it to resolve it.

https://www.loom.com/share/c41eee2d38ed4d3d8cb2e635f4d2cc64




Reference

https://sonin.agency/the-4ps-innovation-model-poc-prototype-pilot-production/
